MORTARS FOR LOW, MEDIUM & HIGH ALUMINA BRICKS

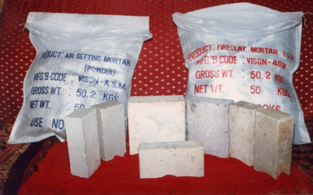

Vision offers complete range of Mortars for laying 30-90% Alumina Bricks.Vison also offers two grades of special Airsetting  Mortar  viz. Vison - ASM - 120  and  Vison - ASM - 120 - S  for  laying  High  Alumina  and  insulating bricks.  Vison - ASM - 120   are   supplied   with   special   liquid   binders   which   are    to   be  mixed with the respective  powder  components in the ratio of 1 : 3.  These products are highly successful due to their excellent properties  and  long life. Premixed  airsetting  mortars  with  liquid  binder  in  ready to apply packing are also available.

            Product

 Al2O3%
Min.		 Fe2O3%
Max.		 P.C.E.
Orton
Min.		 Grain
Size
mm.		 Service
Temp

     Vison-MR-30

    30

3.0

26  1.0   1400°C
     Vison-MR-30S 30 2.2 28 0.5 1450°C

     Vison-MR-40

40 3.5 31 1.0 1450°C

     Vison-MR-40S

40 2.2 31 0.5 1550°C

     Vison-MR-40HS

40 1.5 31 0.5 1550°C

     Vison-MR-50

50 4.0 31.5 1.0 1500°C

     Vison-MR-50S

50 2.2 32.5 0.5 1600°C

     Vison-MR-60

60 3.5 33 0.5 1600°C

     Vison-MR-60S

60 2.2 34 0.5 1650°C

     Vison-MR-70

70 3.5 34 0.5 1600°C

     Vison-MR-70S

70 3.0 35 0.5 1700°C

     Vison-MR-80

 80 3.5 34 0.5 1700°C

     Vison-MR-80L

 80 1.5 37 0.5 1750°C

     Vison-MR-90L

90 0.5 38 0.5 1750°C

     Vison-MR-90K

90 0.3 38 0.5 1750°C

     Vison-MR-99

96 0.3 38 0.5 1800°C

     Vison-50N

 50 4.0 31.5 1.5 1550°C

     Vison-50F

50 4.0 31.5 0.5 1550°C

     Vison-50SF

45 1.5 32.5 0.5 1550°C

     Vison-ASM 120 S
     supplied in two components
     powder & liquid in ratio of 3:1

50 4.0 32 0-1.5 1550°C

     Vison-ASM-120 H

50 4.0 32 0 - 1.5 1550°C

     Vison-ASM-120 R
     Ready Mix with liquid binder

 50 4.0 32 0 - 1.5 1550°C

     Vison-ASM-130 S
     supplied in two components
     powder & liquid in ratio of 3:1

 60 3.5 32 0 - 0.5 1650°C

     Vison-ASM-130 R
     Ready Mix with liquid binder

60 3.5 32 0 - 0.5 1650°C
     Vison-ASM-130 H 60  3.5 32 0 - 0.5 1650°C
Mortars as per clients specification can be manufactured as per international standard
