| MEDIUM & HIGH ALUMINA DENSE CASTABLES |
Monolithic Linings are getting more and more popular in various industrial furnace application due to its uniform jointless structure, flexibility of adopting intricate shapes and easy to apply properties. Vison offers a complete range of castables with various specification to suit industrial application and furnace environment.The broad classification of the range is (1) High Temperature Castable (2) High Strength Castable (3) Insulating Castable. Any tailormade monolithic lining can be also developed on the basis of client's specifications and applications. |
| Product Name |
Al2O3 Min. (%) |
Fe2O3 Max. (%) |
C.C.S. |
P.L.C. |
Dry Density Min. at 110°C/24 hrs.gm/cc |
Max Service Temp. °C |
Refractoriness °C (min) Orton |
Max Grain Size (mm) |
| VISONMAC-45 |
45
|
4.00
|
250 | ± 1.00 | 2.10 |
1400
|
20/1564 | 5 |
| VISON MAC-45 S |
45
|
4.00
|
400 | ± 0.80 | 2.20 |
1350
|
15/1450 | 5 |
| VISON HAC-50 |
50
|
1.30
|
350 | ± 1.00 | 2.10 |
1500
|
30/1665 | 5 |
| VISON SPL-50 |
50
|
1.30
|
400 | ± 1.00 | 2.10 |
1500
|
30/1665 | 5 |
| VISON SUPER-50 |
50
|
1.70
|
550 | ± 0.90 | 2.25 |
1500
|
30/1665 | 5 |
| VISON HAC-60 |
60
|
1.00
|
350 | ± 1.50 | 2.20 |
1600
|
31/1683 | 5 |
| VISON SPL-60 |
60
|
1.00
|
450 | ± 1.50 | 2.10 |
1600
|
31/1683 | 5 |
| VISON HAC-70 |
70
|
5.00
|
350 | ± 1.00 | 2.50 |
1450
|
31/1683 | 5 |
| VISON HAC-80 |
80
|
1.50
|
550 | ± 1.00 | 2.60 |
1700
|
36/1804 | 5 |
| VISON HAC-88 |
88
|
0.80
|
650 | ± 1.00 | 2.75 |
1700
|
36/1804 | 5 |
| VISON HAC-90 |
90
|
0.80
|
600 | ± 1.00 | 2.75 |
1750
|
37/1820 | 5 |
| VISON SUPER-90 |
90
|
0.80
|
850 | ± 0.70 | 2.85 |
1750
|
37/1820 | 5 |
| VISON HAC-94 |
94
|
0.30
|
600 | ± 0.50 | 2.80 |
180
|
38/1835 | 5 |
| VISON HAC-97 |
96
|
0.30
|
400 | ± 0.80 | 2.80 |
1850
|
38/1835 | 5 |
| VISON HAC-99 | 98 |
0.30
|
600 | ± 0.50 | 3.10 |
1850
|
38/1835 | 5 |
|
|
||||||||
| VISON - LC - 45 |
45
|
1.00
|
700
|
± 1.00 | 2.30 | 1550 | 32/1717 | 6 |
| VISON - LC - 60 |
60
|
1.50
|
750
|
± 1.00 | 2.60 | 1600 | 36/1804 | 6 |
| VISON - LC - 60 S |
58
|
1.00
|
750
|
± 0.80 | 2.55 | 1600 | 36/1804 | 6 |
| VISON - LC -70 |
70
|
1.50
|
750
|
± 1.00 | 2.70 | 1600 | 36/1804 | 6 |
| VISON - LC - 70 M |
70
|
0.50
|
700
|
± 0.60 | 2.60 | 1700 | 37/1820 | 6 |
| VISON - LC - 70 LI |
70
|
0.80
|
700
|
± 0.70 | 2.70 | 1650 | 36/1804 | 6 |
| VISON - LC - 80 |
80
|
1.80
|
800
|
± 0.80 | 2.90 | 1700 | 37/1820 | 6 |
| VISON - LC - 90 |
90
|
1.00
|
950
|
± 0.80 | 3.00 | 1700 | 37/1820 | 6 |
| VISON - LC - 95 |
94
|
0.30
|
1000
|
± 0.80 | 3.10 | 1800 | 38/1835 | 6 |

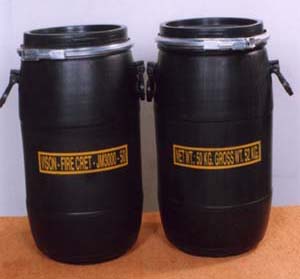

| SPECIAL PACKING IN PLASTIC DRUM FOR CASTABLE CAN BE OFFERED | |
 |
 |
