Vison Range of Ceramic Fiber Blanket

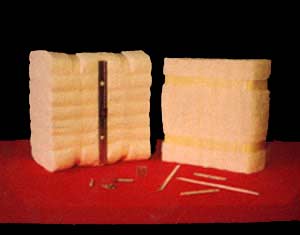

Vison  offers  complete range of ceramic fiber blanket with following excellent properties.   Ceramic fiber blanket are offered  in  standard  length  of  7620mm  [ 7.62 meters ]  and  width  of  610mm  [0.61 ]  and  various thickness of 12,25,38,50mm.  Ceramic boards and ceramic modules are also part of the vison range and can be supplied as per customer specifications and application.Ceramic fiber blankets can be supplied in two standard densities viz [1] 96 kgs/m3  [2] 128 kgs/m3.

  Low thermal conductivity.
No curing or dryout time, lining can be fired to operating temperature immediately.
  Very low heat storage.
Resist most chemical attack.
  Thermal shock resistant.
Easy, quick installation and repair.
  Unaffected by steam.
Excellent sound absorption.
  Asbestoes free.
Resilient.
  Light weight.

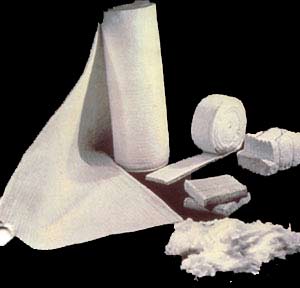

VISON RANGE OF CERAMIC FIBRE PRODUCTS :

1.   CERAMIC FIBRE BLANKETS [ ROLL SIZE : 7620 X 610mm ].

2.   BULK CERAMIC FIBRE.

3.   CERAMIC FIBRE ROPE.

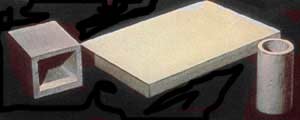

4.   CERAMIC FIBRE BOARD.

CHEMICAL PROPERTIES OF CERAMIC FIBRE BLANKET

SPECIFICATION


 VISON (HTZ)
HIGH TEMP.

ZrO2 (16-19)

VISON (RTZ)
REG.TEMP.

ZrO2 (4-6)


VISON (RT)
REG.TEMP.
AL2O3 33 - 36 42 - 44 47 - 49

SiO2

44 - 18 51 - 53 51 - 53
ZrO2 16 - 19 - 4.6 -
Fe2O3 < 0.1 < 0.1 < 0.1
TiO2 < 0.3 < 0.3 < 0.3
Leachable Chloride ppm < 10 < 10 < 10


GENERAL PROPERTIES ( TYPICAL )
SPECIFICATION VISON  HTZ VISON RTZ VISON RT

Service temperature in °C

1425 1300 1260
Specific Gravity 2.65 2.65 2.65
Filament length (mean) mm 200 200 200
Filament Diameter (mean) mm 2.8 2.8 2.8
Fibre Index (CE TEST) % 48 - 54 46 - 52 46 - 52
Shot content (ASM) % 10 - 15 12 - 17 12 - 17
Blanket tensile strength Kpa 55 55 55
